射頻電纜RG133A/U
- 電 話：18855017299,13637026879
- 郵 箱：823213582@qq.com
產品描述
一、產品用途及特點：

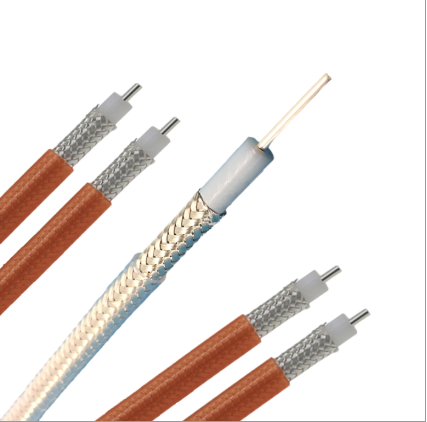

射頻電纜RG133A/U多用于傳輸視頻信號、無線電信號、測量信號和數據信號的電纜。電纜主體結構由內導體、絕緣、外導體和護套構成。電纜具有低衰減，傳輸距離遠，易于安裝等特點。
射頻電纜RG133A/U產品詳情
二、產品標準：參照有關標準.
三、產品型號：RG、RF、RH系列
四、 使用特性： 射頻電纜RG133A/U使用溫度：-30℃—+70℃和-55℃—+200℃
產品參數
五、主要技術指標
型號 | RG-UL | 導體 | 絕緣 | 編 織 | 護套 | 阻抗 | 電容 | 衰減 | |||||
根數 ／ (mm) | 材料 | 直徑 | 材料 | 第一層 | 第二層 | 材 | 直徑 | 材料 | |||||
股×根/直徑 | |||||||||||||
RG5/U | 1/1.29 | BC | 4.7 | LDPE | 16×9/0.16 | 24×8/0.16 | BC | 8.4±0.20 | PVC | 52.5 | 93.5 | 85 | |
RG6/U | 1354 | 1/1.024 | CCS | 4.57 | LDPE | 16×9/0.16 | 16×8/0.16 | TC | 7.4±0.20 | PVC | 75 | 56.8 | 69 |
RG7/U | <sp, an="">1/0.914 | BC | 6.35 | LDPE | 24×7/0.16 | BC | 9.4±0.20 | PVC | 94.5 | 41.0 | 66 | ||
RG8/U | 1354 | 7/0.724 | BC | 7.24 | LDPE | 24×8/0.8 | BC | 10.3±0.2 | PVC | 52 | 96.8 | 69 | |
RG8A/U | 1354 | 7/0.724 | BC | 7.24 | LDPE | 24×8/0.18 | BC | 10.3±0.2 | NCPVC | 52 | 96.8 | 69 | |
RG11/U | 1354 | 7/0.404 | TC | 7.24 | LDPE | 24×8/0.18 | BC | 10.3±0.2 | PVC | 75 | 67.3 | 76 | |
RG11A/U | 1354 | 7/0.404 | TC | 7.24 | LDPE | 24×8/0.18 | BC | 10.3±0.2 | NCPVC | 75 | 67.3 | 76 | |
RG13/U | 1354 | 7/0.404 | TC | 7.11 | LDPE | 24×9/0.16 | 24×8/0.16 | BC | 10.7±0.2 | PVC | 74 | 67.3 | 76 |
RG13A/U | 1354 | 7/0.404 | TC | 7.11 | LDPE | 24×9/0.16 | 24×8/0.16 | BC | 10.7±0.2 | NCPVC | 74 | 67.3 | 76 |
RG14/U | 1/2.59 | BC | 9.40 | LDPE | 24×10/0.18 | 24×8/0.18 | BC | 13.8±0.2 | PVC | 52 | 96.8 | 46 | |
RG14A/U | 1/2.59 | BC | 9.40 | LDPE | 24×10/0.18 | 24×8/0.18 | TC | 13.8±0.2 | NCPVC | 52 | 96.8 | 46 | |
RG15/U | 1/1.45 | CCS | 9.40 | LDPE | 24×10/0.18 | 24×8/0.18 | BC | 13.8±0.2 | PVC | 76 | 65.6 | 49 | |
RG29/U | 1354 | 1/0.813 | BC | 2.95 | LDPE | 16×7/0.127 | BC | 4.7±0.15 | PE | 53.5 | 93.5 | 138 | |
RG34/U | 7/0.724 | BC | 11.6 | LDPE | 24×9/0.16 | BC | 15.9±0.25 | PVC | 71 | 70.5 | 46 | ||
RG34B/U | 7/0.632 | BC | 11.7 | LDPE | 24×10/0.18 | BC | 16.0±0.25 | NCPVC | 75 | 67.0 | 48 | ||
RG54/VU | 7/0.386 | BC | 4.52 | LDPE | 16×9/0.16 | BC | 6.1±0.15 | PE | 58 | 85.8 | 187 | ||
RG55/U | 1/0.813 | BC | 2.90 | LDPE | 16×7/0.127 | 16×8/0.127 | BC | 5.0±0.15 | PE | 50.5 | 93.6 | 138 | |
RG58/U | 1354 | 1/0.813 | BC | 2.95 | LDPE | 16×8/0.127 | TC | 4.95±0.15 | PVC | 53.5 | 90.5 | 133 | |
RG58A/U | 1354 | 19/0.18 | TC | 2.95 | LDPE | 16×8/0.127 | TC | 4.95±0.15 | PVC | 50 | 93.5 | 174 | |
RG58C/U | 1354 | 19/0.18 | TC | 2.95 | LDPE | 16×8/0.127 | TC | 4.95±0.15 | NCPVC | 50 | 93.5 | 174 | |
RG59/U | 1354 | 1/0.643 | CCS | 3.71 | LDPE | 16×7/0.16 | BC | 6.15±0.15 | PVC | 73 | 68.9 | 125 | |
RG59A/U | 1354 | 1/0.643 | CCS | 3.71 | LDPE | 16×7/0.16 | TC | 6.15±0.15 | NCPVC | 73 | 68.9 | 125 | |
RG59B/U | 1/0.584 | CCS | 3.71 | LDPE | 16×7/0.16 | BC | 6.15±0.15 | NCPVC | 93 | 68.9 | 112 | ||
RG62/U | 1354 | 1/0.643 | CCS | 3.71 | LDPE | 16×7/0.16 | BC | 6.15±0.15 | PVC | 93 | 44.3 | 102 | |
RG62A/U | 1/0.613 | CCS | 3.71 | LDPE | 16×7/0.16 | BC | 6.15±0.15 | NCPVC | 125 | 32.8 | 66 | ||
RG63/U | 1/0.643 | CCS | 7.24 | LDPE | 24×8/0.18 | BC | 10.3±0.2 | PVC | 125 | 32.8 | 66 | ||
RG63B/U | 1/0.643 | CCS | 7.24 | LDPE | 24×8/0.18 | BC | 10.3±0.2 | NCPVC | 125 | 32.8 | 66 | ||
RG71/U | 1354 | 1/0.643 | CCS | 3.71 | LDPE | 16×7/0.16 | 16×8/0.127 | BC | 6.4±0.15 | PVC | 93 | 44.3 | 102 |
RG89/U | 1/0.643 | CCS | 7.24 | LDPE | 16×12/0.18 | BC | 16.0±0.25 | PVC | 125 | 32.8 | 66 | ||
RG122/U | 1354 | 27/0.13 | TC | 2.44 | LDPE | 16×6/0.127 | BC | 4.06±0.15 | NCPVC | 50 | 105 | 195 | |
RG133A/U | 1/0.645 | BC | 7.2 | LDPE | 24×8/0.18 | BC | 10.3±0.2 | NCPVC | 95 | 53 | 76 | ||
RG174/U | 1354 | 7/0.16 | CCS | 1.52 | LDPE | 16×5/0.10 | TC | 2.54±0.15 | NCPVC | 50 | 110 | 259 | |
RG213/U | 7/0.752 | BC | 7.24 | LDPE | 24×8/0.18 | BC | 10.3±0.2 | NCPVC | 50 | 100 | 69 | ||
RG216/U | 7/0.404 | TC | 7.24 | LDPE | 24×9/0.16 | 24×8/0.16 | BC | 10.8±0.2 | NCPVC | 75 | 67 | 88 | |
RG217/U | 1/2.69 | BC | 9.4 | LDPE | 24×10/0.18 | 24×8/0.18 | BC | 13.8±0.2 | NCPVC | 50 | 100 | 50 | |
